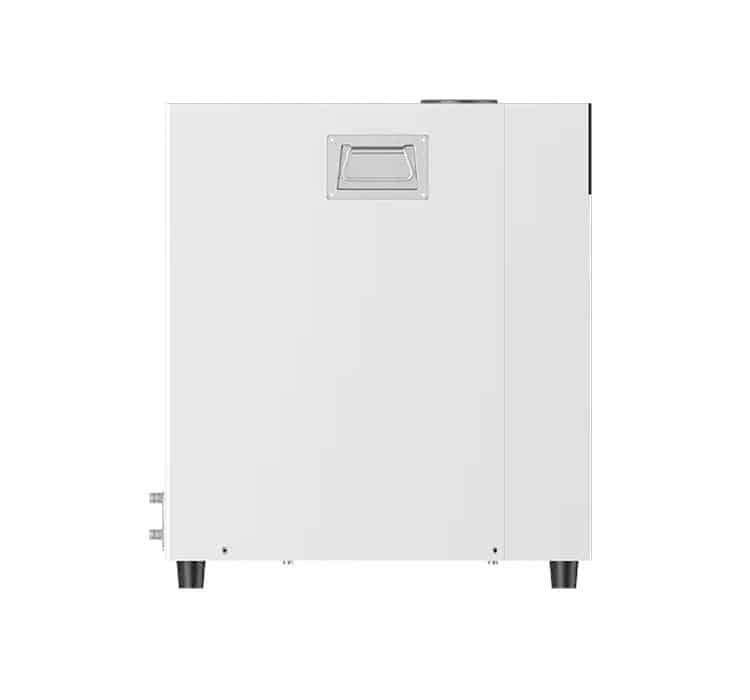

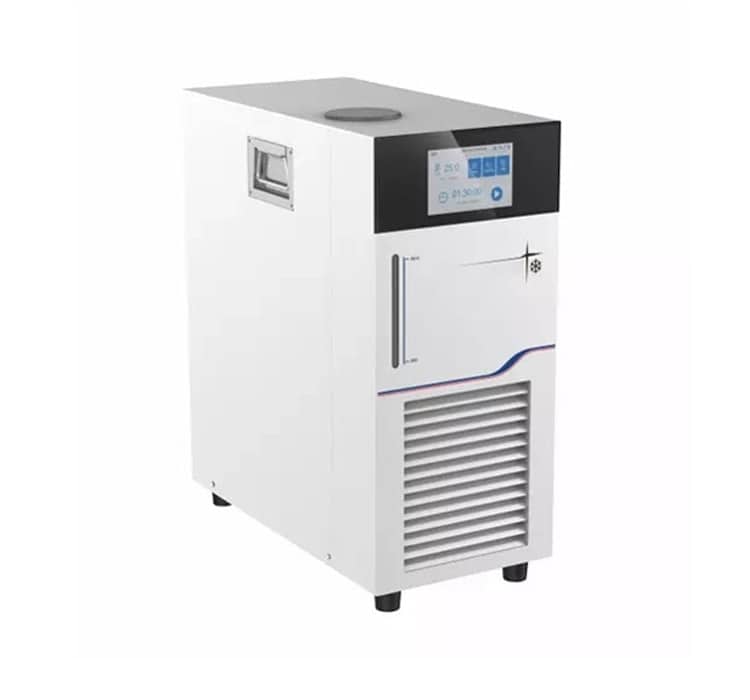

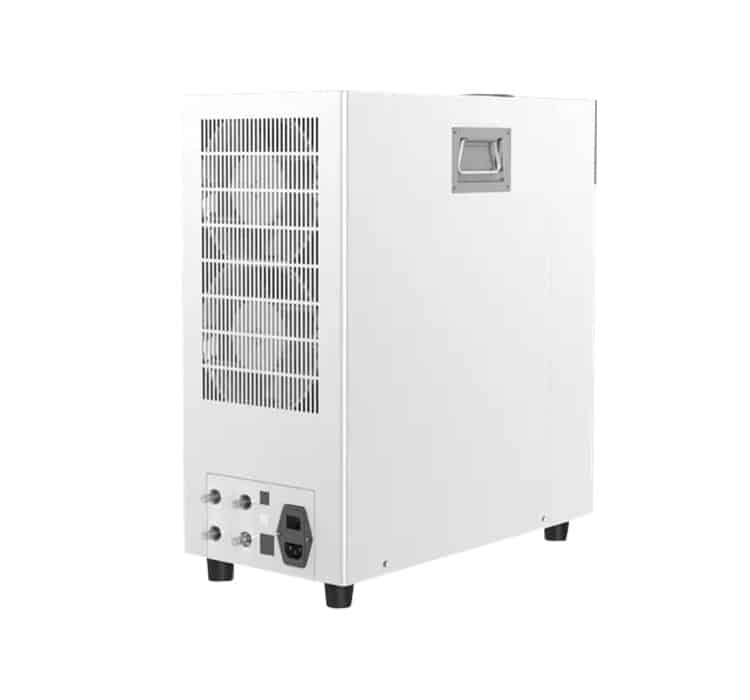

Recirculating Chiller
Introducing the Pinnacle PC800, a cutting-edge recirculating chiller designed to meet the rigorous demands of today’s laboratories. With its rapid cooling capability, achieving temperatures as low as -20°C in just 30 minutes, it stands out as a reliable and efficient cooling solution.
Key Features:
- Rapid Cooling: Achieve -20°C from room temperature in just 30 minutes.
- Wide Temperature Range: Operate seamlessly from -20°C to room temperature.
- Compact & Efficient: Designed to fit laboratory benches and fume hoods without compromising on performance.
- Precision Control: Advanced proportional cooling ensures consistent temperatures, complemented by a 4.3-inch LCD touchscreen for easy monitoring.
- Safety & Durability: Stainless steel water bath, over-current protection, and overheating safeguards ensure longevity and safe operation.
- Eco-friendly: Uses an environmental-friendly refrigerant, R290.
- Connectivity: Equipped with an RS485 communication interface for seamless data transfer.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Description
The Pinnacle PC800 laboratory chiller is a powerful and precise cooling solution for any laboratory application. With a fast cooling time of just 30 minutes from room temperature to -20°C, a wide temperature range, and a compact design suitable for laboratory benches and fume hoods, this chiller is an essential tool for any lab. The advanced proportional cooling and precise temperature control ensure excellent temperature stability, while the stainless steel water bath with visible water level indicator and convenient liquid filling and draining make it easy to use. The 4.3-inch LCD touchscreen allows for easy setting and monitoring, and the chiller comes with over-current and overheating protection, as well as an automatic recovery function after power outages. Plus, it uses an environmental-friendly refrigerant and comes with an RS485 communication interface for added convenience.
Additional information
| Model | CH800 |
|---|---|
| Working Temperature Range | -20°C RT |
| Cooling Capacity | @20°C, 750W/ @10°C, 650W/ @0°C,500W/ @-10°C, 400W/ @-20°C, 200W |
| Time to Cool from RT | (25°C) down to -20℃ ≤30min |
| Pump Flow Max | 22 L/min |
| Pump Pressure Max | 1 bar |
| Bath Volume | 5 L (max storage 5.3L) |
| Temperature Stability DIN | 12876 +0.3 K |
| Temperature Display Accuracy | ±0.3°C |
| Refrigerant | R290 |
| Power Supply | 220V/110V; 50Hz/60Hz |
| Wattage Max | 750W |
| Weight | ≤35Kg |
| Dimension (WxDxH) | 235×468×535 mm |
