5″ Multi Magnetic Hotplate Stirrers With Hub Control

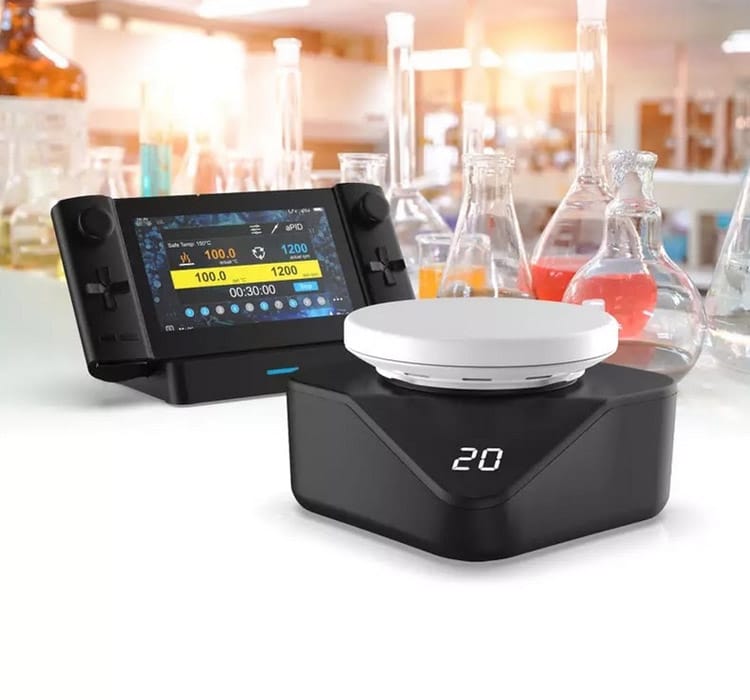

Pinnacle’s Magnetic Hotplate Stirrer, model PC321, is an essential addition to modern laboratories. With its precise temperature range from room temperature to 310°C and a speed range of 50-1500RPM, it’s designed for diverse experimental needs. The stirrer can handle a maximum stirring quantity of 20L, ensuring versatility for various applications.
Key Features:
- Safety First: Safety temperature range of 50°C to 325°C.
- Connectivity: USB interface for data transfer and Bluetooth capabilities for seamless control.
- Durable Design: Ceramic-coated heating plate ensures longevity and resistance to high temperatures.

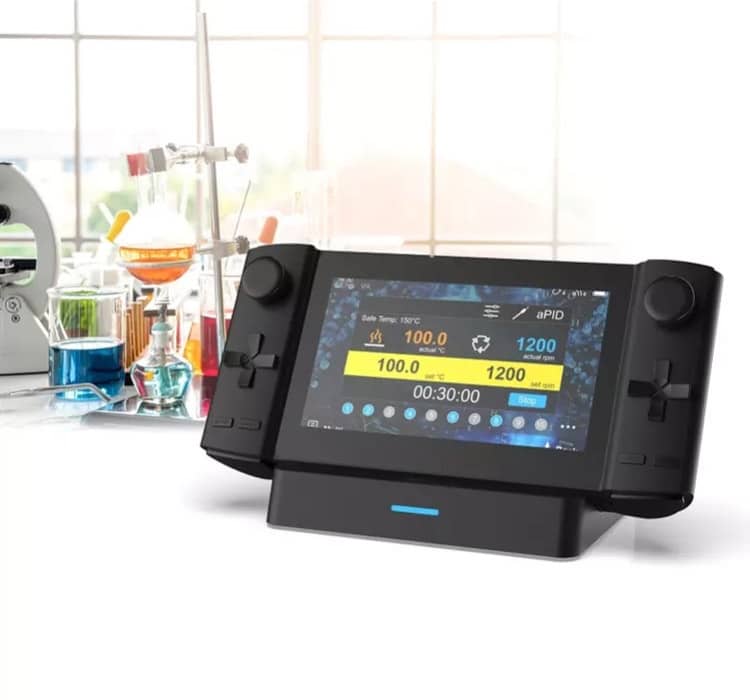

- Hub Controller: Equipped with a 7-inch touch screen display, rechargeable battery, and intuitive controls for easy operation.

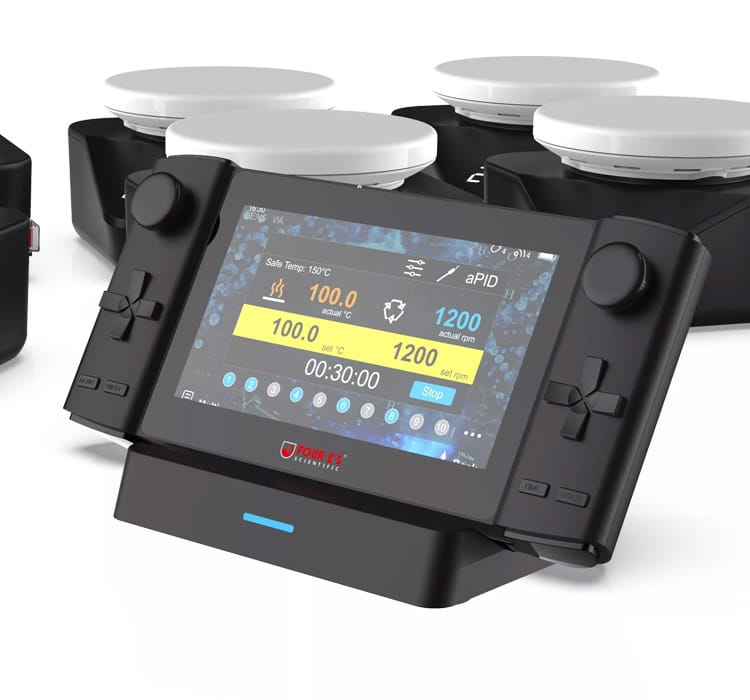

- Charging Stand: Designed for efficient charging of multiple stirrers.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Description
Pinnacle’s Magnetic Hotplate Stirrer model PC321 is a must-have for any laboratory. With a temperature range of room temp. to 310°C, a speed range of 50-1500RPM, and a maximum stirring quantity of 20L, this stirrer is perfect for any experiment. The safety temperature range of 50°C to 325°C, USB interface, and ceramic-coated heating plate make it a safe and reliable option. The Hub Controller, with its 7-inch touch screen display, rechargeable battery, and Bluetooth capabilities, allows for easy and convenient control of the stirrer. The Charging Stand provides a streamlined charging solution for multiple stirrers.
Additional information
| Model | MS321 |
|---|---|
| Set-up Plate Material | Aluminium Alloy with Ceramic Coating |
| Set-up Plate Dimensions | Φ5 inches |
| Heating Temperature Range | Room temp. to 310°C |
| Speed Range | 50-1500RPM |
| Safety Temperature | 50°C to 325°C |
| Speed Control Accuracy | ±1RPM |
| Temperature Control Accuracy | ±1°C |
| USB Interface | Yes |
| Time Range | 99H59min |
| Number of Magnetic Hotplate Stirrer Wired Connections | 6 |
| Wireless Connections | No limit |
| Motor Input | 24V, 30W |
| Motor | Brushless DC motor |
| External Temperature Sensor | Yes |
| Max. Stirring Quantity | (H₂O) 20L |
| Power Supply | 200-240/100-120 VAC; 50/60Hz |
| Stirring Bar | 55MM |
| Power Switch | Yes |
| Dimension | 166x166x106mm |
| HUB CONTROLLER |
|
| Display | 7-inch touch screen |
| Rechargeable Battery | Lithium polymer battery: 7.4V |
| Charging Time | 3 hrs |
| Alarm | Buzzer |
| Battery Capacity | 5000mAh |
| Battery Life | 8H |
| Main Controller Dimension | 263x126x40mm |
| CHARGING STAND |
|
| Power Input | 200-240/100-120 VAC; 50/60Hz |
| Interface | 6 x USB 1.1 interface |
| Power Input Interface | DC Port |
| Wireless | 2.4G Wireless |
| USB Cable | 2-meter cable x 6 |
| Bluetooth | Yes |
| Wireless Effective Connection Distance | 10m |
