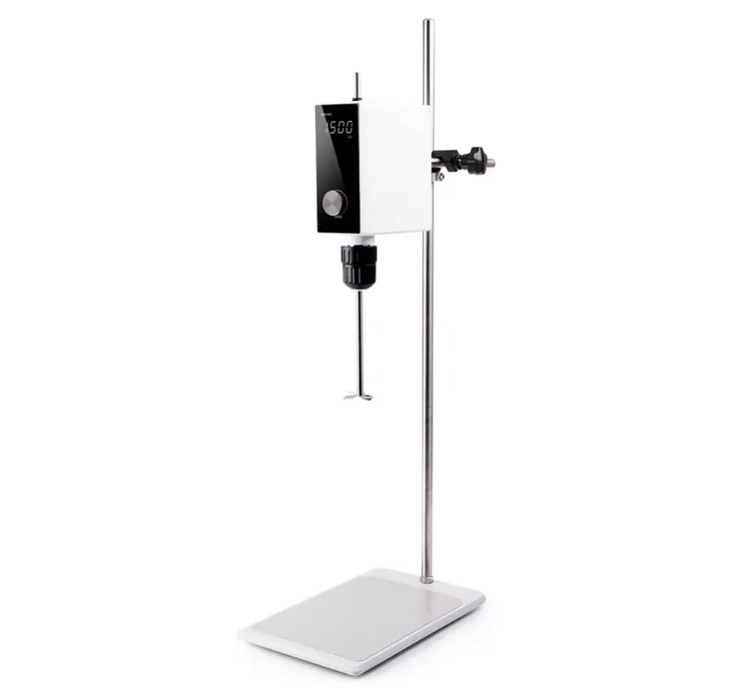

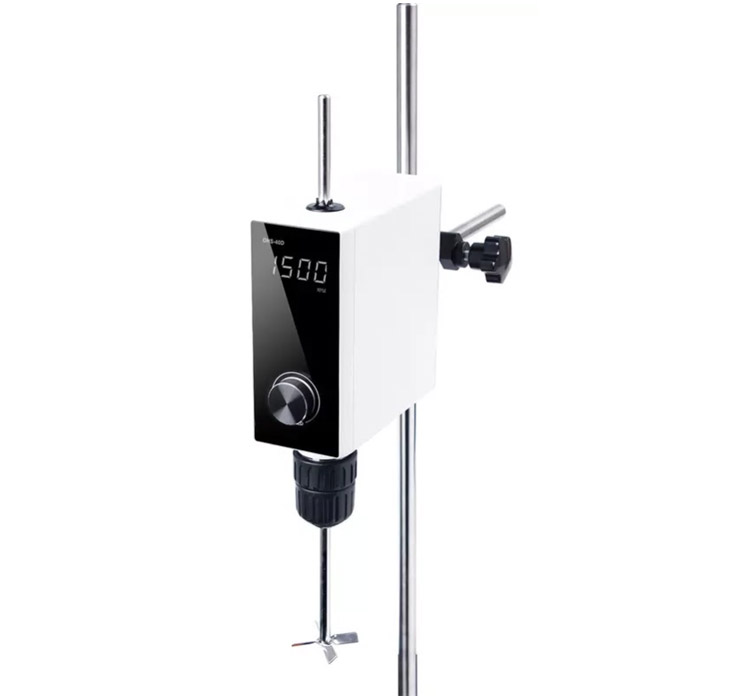

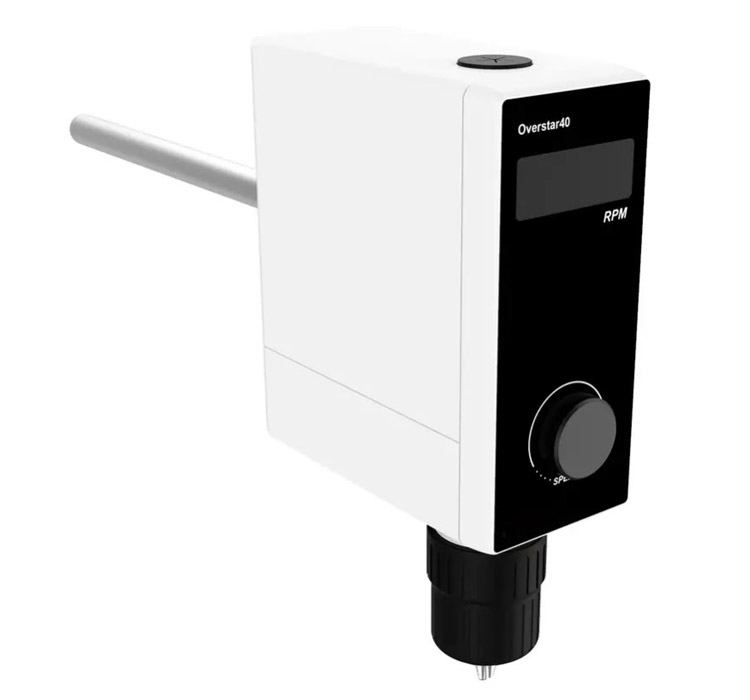

40L LED Digital Overhead Stirrer
The Pinnacle PC-40D Laboratory Stirrer is a robust and dependable solution for all your laboratory mixing needs. It’s a high-performing device with a maximum torque of 40 N·cm and a versatile speed range of 50-2000 rpm. This allows it to manage a maximum stirring volume of up to 40L.
Key Features:
- Maximum Torque: With a maximum torque of 40 N·cm, it provides powerful stirring for your laboratory needs.
- Speed Range: The versatile speed range of 50-2000 rpm ensures it can handle a variety of stirring tasks.
- Maximum Stirring Quantity: It can handle a maximum stirring quantity of 40L, making it suitable for large-scale operations.
- LED Speed Display: The LED speed display allows for precise control and monitoring of the stirring speed.
- Overload and Motor Protection: These features ensure safe operation and prolong the stirrer’s lifespan.
- Compact and Lightweight Design: Its compact and lightweight design makes it easy to use and store.
- Chuck Diameter Range: With a chuck diameter range of 0.5-10mm, it’s adaptable for various stirring needs.
- Protection Class and Ambient Temperature: With a protection class of IP42 and a permissible ambient temperature range of 5-40°C, the Pinnacle PC-40D Laboratory Stirrer is built to endure varying conditions.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Description
The Pinnacle PC-40D laboratory stirrer is a powerful and reliable solution for all your mixing needs. With a max torque of 40 N·cm and a speed range of 50-2000 rpm, it can handle a max stirring quantity of 40L. The LED speed display and overload and motor protection ensure safe and precise operation. Its compact and lightweight design, along with a chuck diameter range of 0.5-10mm, make it easy to use and store. Plus, with a protection class of IP42 and a permissible ambient temperature range of 5-40°C, it’s built to last.
Additional information
| Model | OHS-40D |
|---|---|
| Max. torque [Ncm] | 40 |
| Speed Range [rpm] | 50-2000 |
| Viscosity Max. [mPas] | 50,000 |
| Chuck Diameter Range [mm] | 0.5-10 |
| Max. Stirring Quantity (H20)[L] | 40 |
| Voltage [V] | 100-240 |
| Frequency [Hz] | 50/60 |
| Power [W] | 65 |
| Speed Display | LED |
| Overload Protection | YES |
| Motor Protection | YES |
| Dimensions (DWH)[mm] | 71×160×192 |
| Weight [kg] | 2.5kg |
| Protection class according to DIN EN60529 | IP42 |
| Permissible ambient temperature [C] | 5-40 |
| Permissible relative humidity [%] | 80 |
