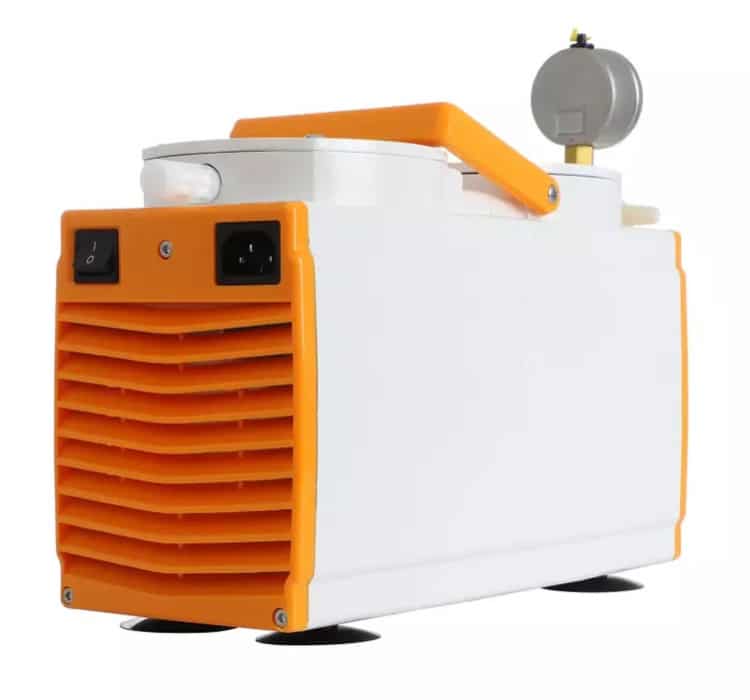

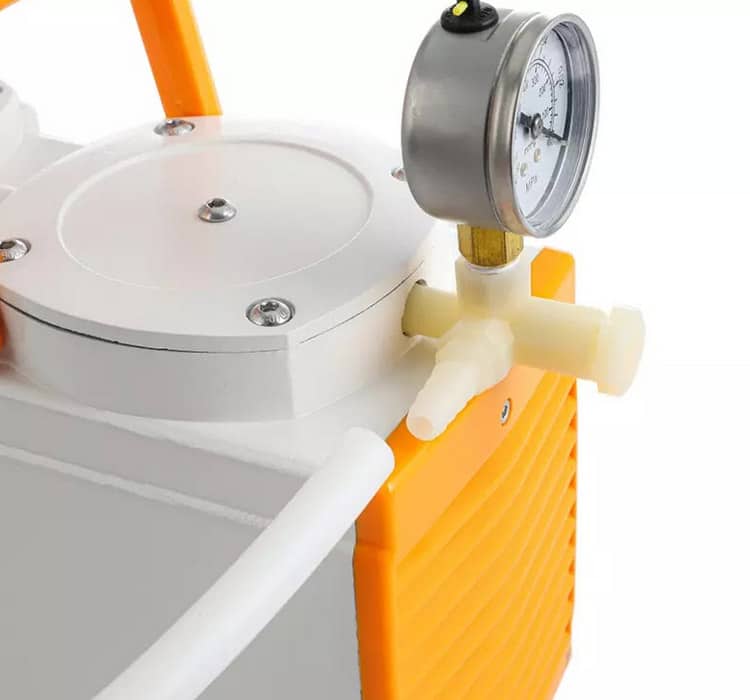

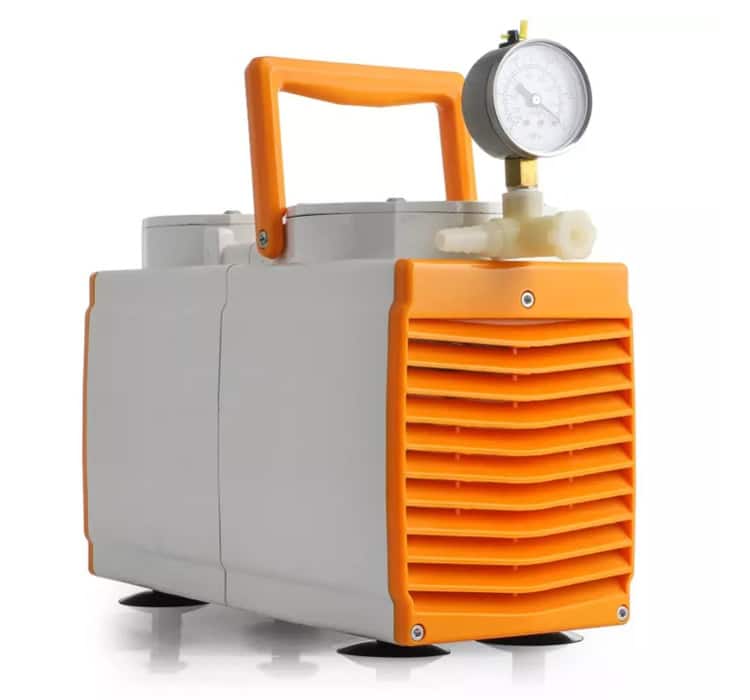

Diaphragm Vacuum Pump
The Pinnacle Vacuum Pump, model number PC01, is a top-tier laboratory equipment that features cutting-edge technology and superior materials, ensuring optimal vacuum degree and airflow rate. This highly efficient vacuum pump boasts a pumping speed of 30L/Min and an ultimate pressure vacuum of 50mbar. Crafted with premium NBR diaphragm valve material, this pump operates without the need for any medium like oil, thereby eliminating pollution.
One of its standout features is an inlet filter designed to block contamination, guaranteeing the delivery of clean air. This AC vacuum pump is also equipped with overheat protection to safeguard the motor from damage, and a silencer outlet for noise-free operation.
With its compact design, lightweight build, and easy maintenance, the Pinnacle Vacuum Pump PC01 is an essential addition to any laboratory setup. It’s not just a vacuum pump; it’s a solution that enhances efficiency and productivity in your laboratory.
Improve your laboratory operations with the Pinnacle Vacuum Pump PC01 – a perfect blend of performance, quality, and durability.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Description
The Pinnacle Vacuum Pump, model number PC01, is a highly efficient laboratory equipment that boasts advanced technology and materials for ideal vacuum degree and airflow rate. With a pumping speed of 30L/Min and ultimate pressure vacuum of 50mbar, this pump is made with high-quality NBR diaphragm valve material and operates without any medium like oil, causing no pollution. It also features an inlet filter to prevent contamination and ensure clean air. The AC vacuum pump has overheat protection to prevent motor damage and a silencer outlet for quiet operation. With its compact size, light weight, and easy maintenance, this pump is a must-have for any laboratory.
Additional information
| Product Name | Vacuum Pump |
|---|---|
| Model No. | VP01 |
| Pumping Speed | 30L/Min |
| Ultimate Pressure Vacuum | 50mbar |
| Voltage Rating | 220Vac; 50Hz |
| Housing Temperature in Operation | ＜55℃ |
| Motor Power | 160 W |
| Inlet Diameter | 6 mm |
| Outlet | Silencer |
| Permissible Ambient Temperature | 7-40 ℃ |
| Pump Heads | 2 |
| Dimensions (L/W/H) | 350 x 130 x 215 mm |
| Noise | ＜60 db |
| Weight | 9 kg |
| Diaphragm Valve Material | NBR |
